WELCOME to My Shop Commodity, Competitive Price, Customer First!
Your business with me will be a pleasant experience for you. I am dedicated to bring joy, safe and top-quality products for you. All the products I offer in my store come with fashion style, superior quality but cheaper price all the time. When you place order, please do not hesitate to leave more detailed requirements you want, and then I will arrange the goods for you as soon as possible. First time, we do business; next time, we become friends. Hope you enjoy the whole process!

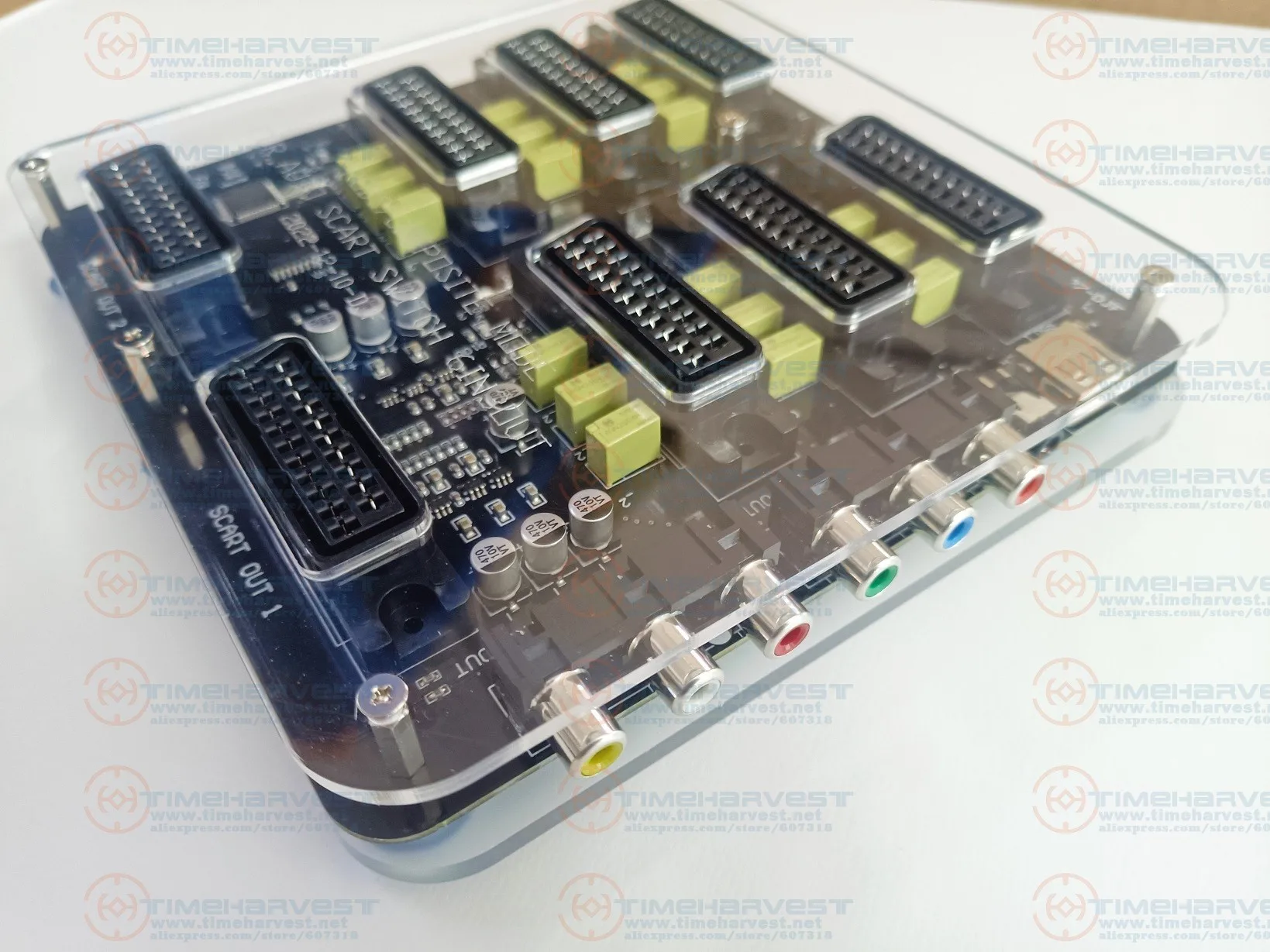

6 IN 3 Output EUR SCART Distributor 2 Scart output and 1 RGBS output Auto RGBS Video Converter Switcher Board For MD/MD2/SS/PS/PS2/PS3/DC/SFC
Upgraded Version 6 IN 3 OUT Auto Switcher support this connector:
Instructions for use:

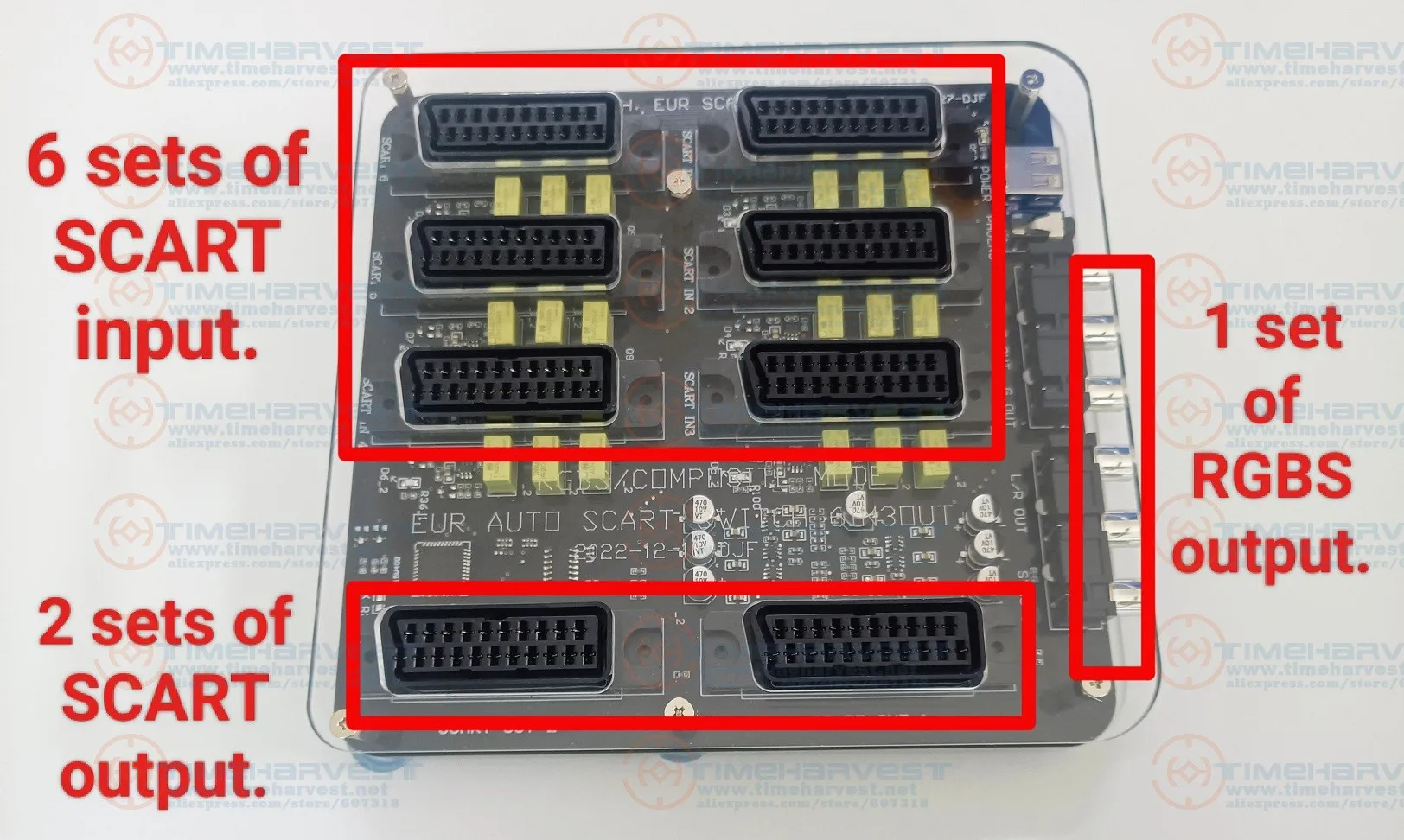

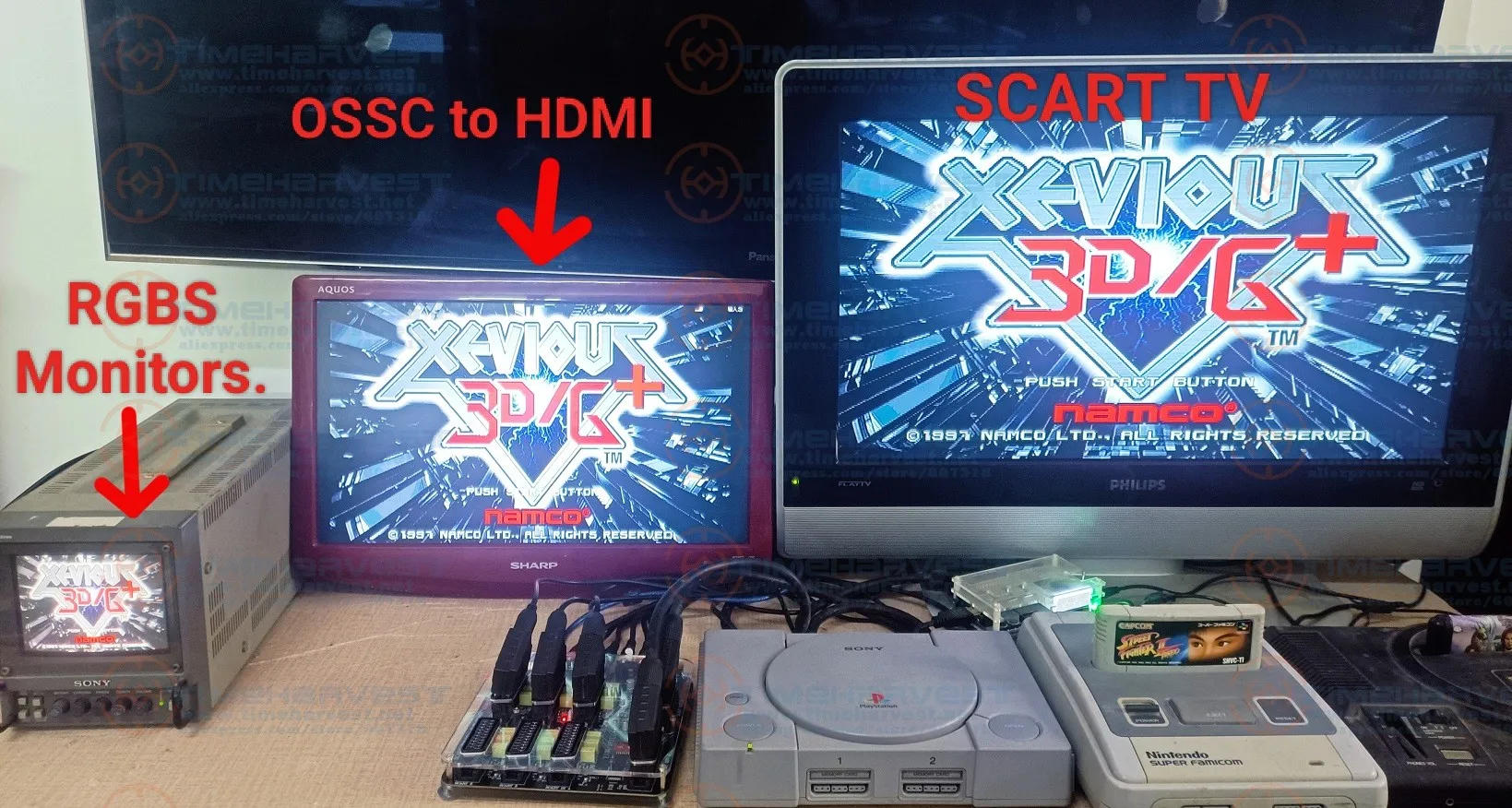

1. It can input 6 sets of EUR SCART devices at the same time, 2 sets of EUR SCART outputs and 1 set of RGBS outputs (RGBS is generally connected to a monitor with RGBS input, and the monitor needs to be connected with a BNC to RCA connector, which cannot be used by ordinary TV), and 3.5 audio outputs are provided with headphone holes.
2. Applicable to Euro SCART equipment, MD/MD2/SS/PS/PS2/PS3/DC/NEW FC/SFC/N64/NGC/VCR/DVD Wait for the game machine or player to use. SCART input/output supports RGBS and composite video modes, and can be used by devices without RGB.
3. The working principle of mechanical test is straight-through, with very good compatibility. There will be no interference when multiple machines work at the same time. Super easy to use, solve the trouble of plugging multiple machines!
4. In automatic mode, turn on the power switch of the game machine to automatically output. Multiple machines can work at the same time, and the last machine is turned on as the output. In addition to the power LED display, each group of SCART input has corresponding LED display.
5. You can use the general mobile phone charger or other USB devices with power supply function to use the power supply, and the input voltage is 5V.
6. Note: ※ SCART specification is European standard, and Japanese standard wire rod cannot be used. ※ When the power supply of SCART input device is turned on, the corresponding LED will be displayed. If the LED is not on, it means that the SCART cable is not standard. Please replace the wire. ※ In case of poor picture quality, please check whether the SCART input and output wires are in RGB mode. ※ The SCART wire has high requirements. If there are serious noise spots or interference lines in the picture, please replace the wire with shielding.
Function Description:
1. It is suitable for European standard EUR SCART equipment, MD/MD2/SS/PS/PS2/PS3/DC/NES/SFC/N64/NGC/VCR/DVD..... and other game consoles or players. SCART input/output supports RGBS and composite video modes, and devices without RGB such as N64/NES/VCR can also be used.

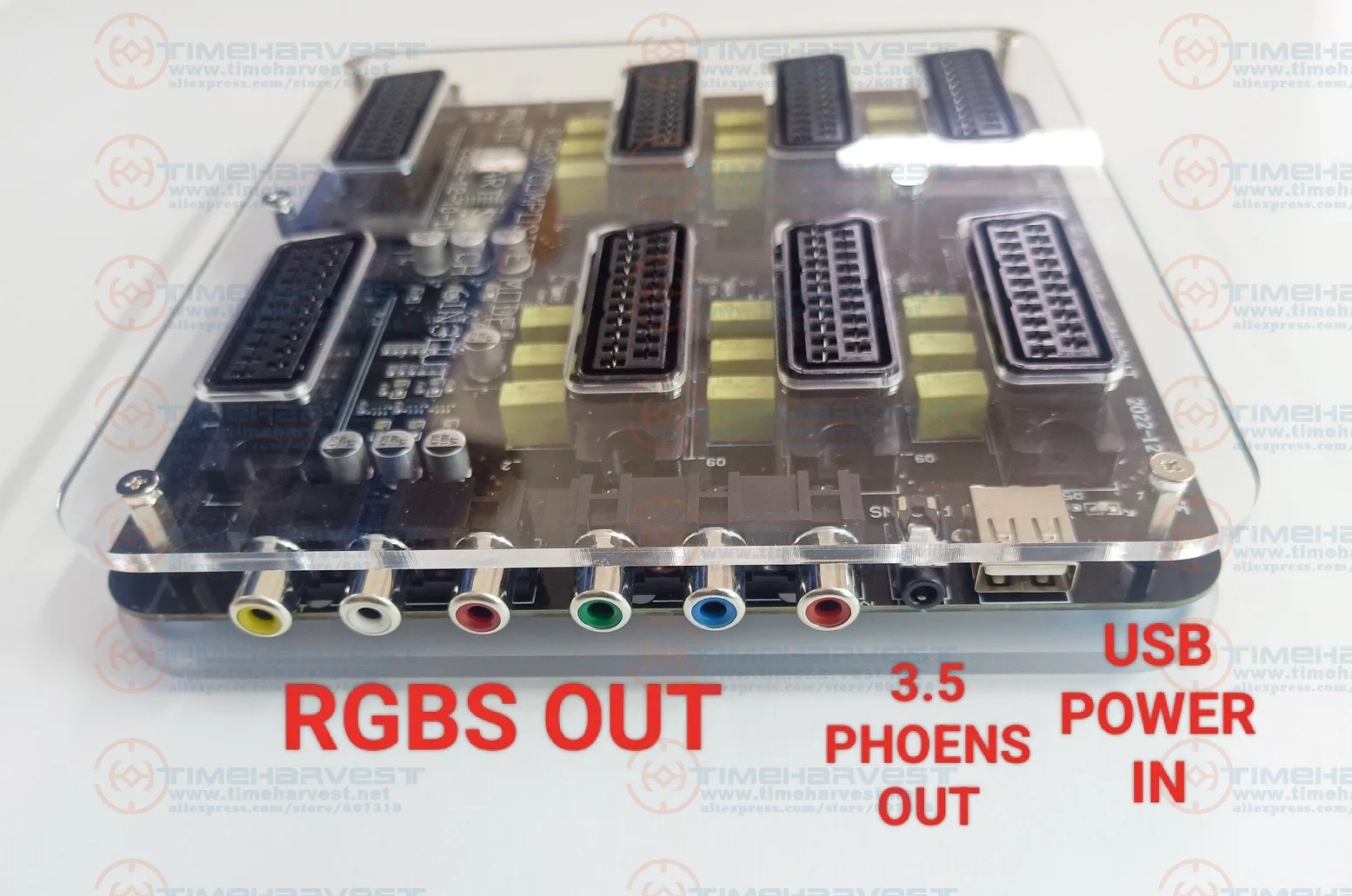

2. 10 groups of EUR SCART devices can be input at the same time, 2 groups of EUR SCART outputs and 1 group of RGBS outputs at the same time, with a headphone jack 3.5 audio output.
3. In automatic mode, turn on the power switch of the game console to automatically output, and multiple machines can work at the same time, and the last machine power is turned on as the output. In addition to the power LED light display, each group of SCART input has a corresponding LED light work display.
4. The working principle of the mechanical test is straight-through, very good compatibility, and there will be no interference when multiple machines work at the same time. Super easy to use, solve the trouble of plugging and unplugging multiple machines!
5. The power supply can be used with general mobile phone chargers or other devices with USB power supply function, and the input voltage is 5V.
6. Remind:SCART specifications are European standards, and Japanese-gauge wires cannot be used. When the power of the SCART input device is turned on, the corresponding LED light will display, if not, it means that the SCART cable is not standard, please replace the cable.
|
